282087-1
Manufacturer:
TE Connectivity
Mfr.Part #:
282087-1
Datasheet:
Description:

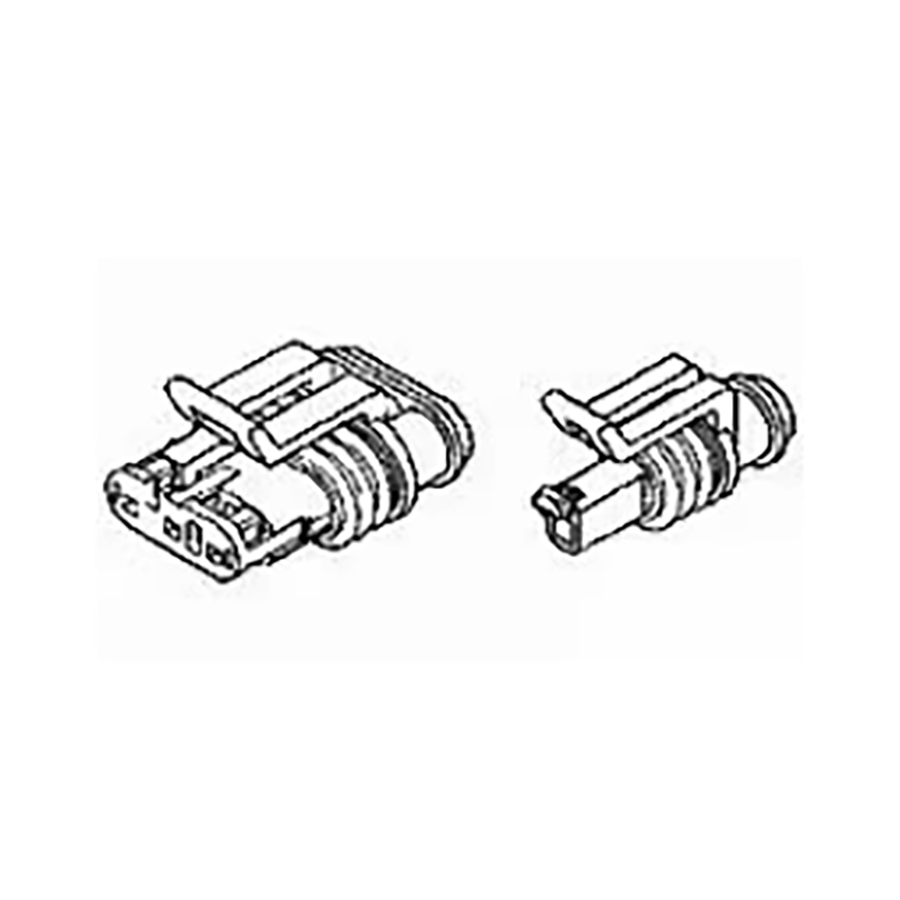

Headers and Wire Housings Free Hanging Plug, Socket Number of Positions:3 Pitch:6 mm
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 24 V |
| Length | 23.0886 mm |
| Width | 9.3 mm |
| Termination | Crimp |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 3 |
| Height | 32.2072 mm |
| Material | Silicone |
| Packaging | Bulk |
| Voltage Rating | 24 V |
| Depth | 21.3 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Insulation Resistance | 200 MΩ |
| REACH SVHC | No SVHC |
| Ratings | IP67 |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Tin |
| Pitch | 6 mm |
| Current Rating | 14 A |
| Orientation | Straight |
| Lifecycle Status | Production (Last Updated: 2 weeks ago) |
| Color | Black |
| Gender | Female |
| Number of Contacts | 3 |
| ELV | Compliant |
| Connector Type | Plug, Socket |
| Number of Positions | 3 |
| Number of Rows | 1 |
| Housing Material | Polyamide |
| Fastening Type | Latch |
| Circuit Application | Signal |
| Contact Resistance | 3 mΩ |
| Wire Gauge (Max) | 22 AWG |
| Wire Gauge (Min) | 14 AWG |
| Housing Color | Black |
| Mating Post Length | |
| Mating Tab Width | 1.4986 mm |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 2 weeks ago) |
| Polarized | Yes |
| Hybrid Connector | No |
| Serviceable | Yes |
| Termination Post Length |
Stock: 8763
Distributors
pcbx
pcbxUnit Price$0.50918
Ext.Price$0.50918
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.50918 | $0.50918 |
| 10 | $0.40925 | $4.09250 |
| 25 | $0.37523 | $9.38075 |
| 50 | $0.34404 | $17.20200 |
| 100 | $0.31544 | $31.54400 |
| 300 | $0.29488 | $88.46400 |
| 500 | $0.27567 | $137.83500 |
